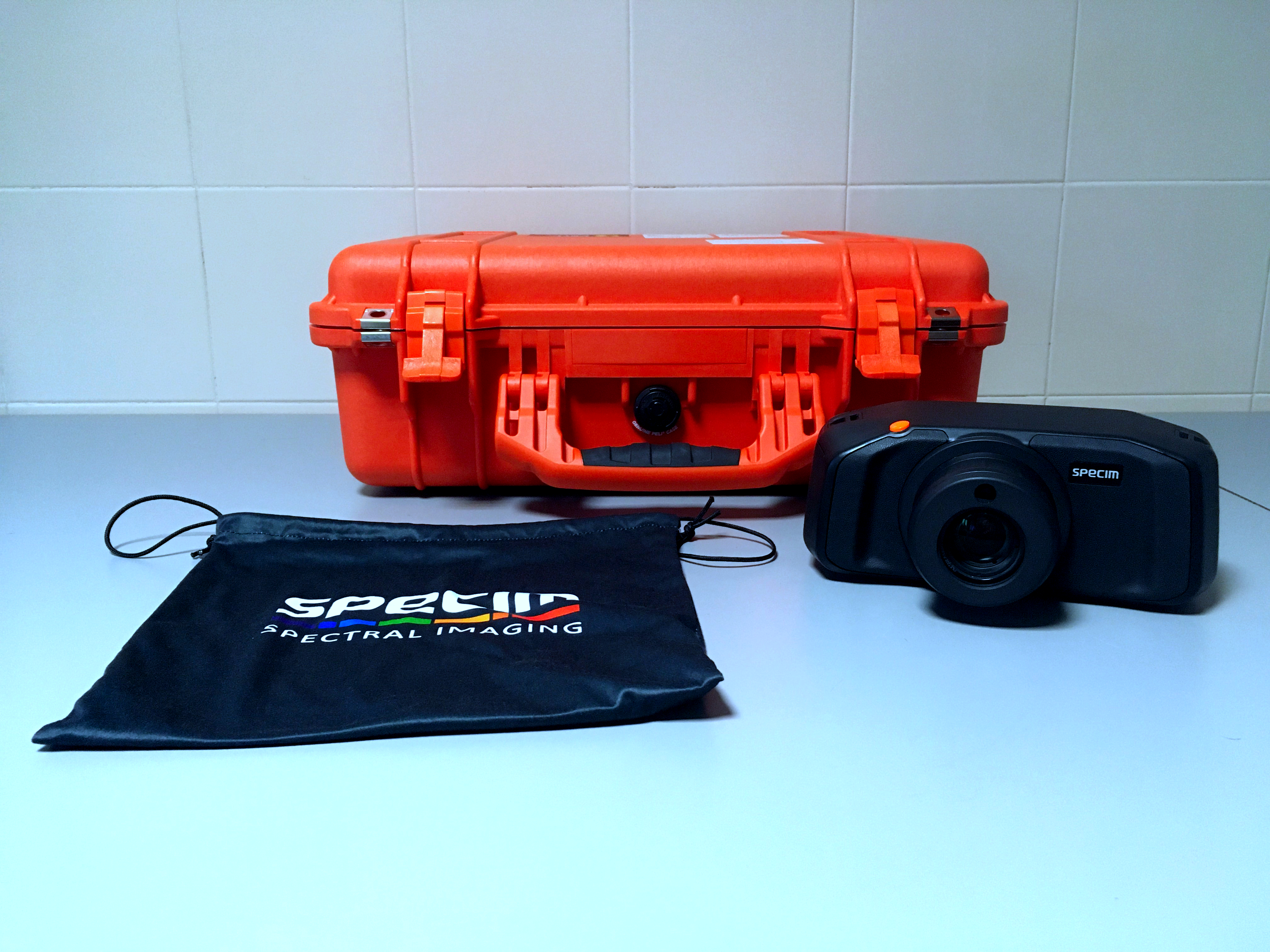

Specim IQ hyperspectral camera

SpecimIQ

Specifications:

Wavelength range: 400 - 1000 nm.

Spectral resolution: 3 nm.

Number of bands: 204.

F/number at sensor: 1.7.

F/number at slit: 2.2

Spatial resolution: 512 x 512 pixels.

Sensor type: CMOS.

Pixel size: 17,58 x 17,58 um.

Bitdepth: 12 bits.

Peak SNR > 400:1

Working distance: 150 mm - Infinite.

FOV: 31 x 31 degrees.

Focal length: 21 mm.

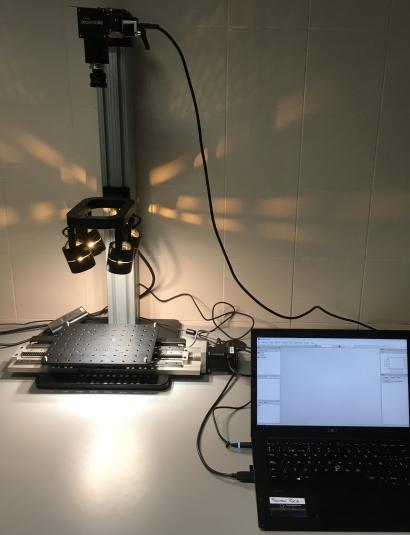

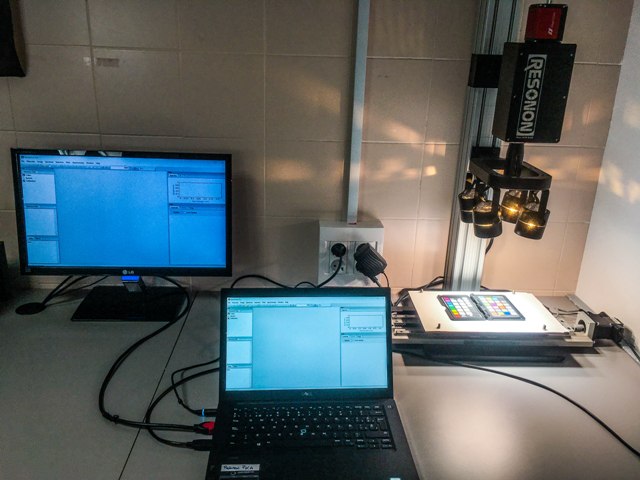

Hyperspectral line camera Pika L (Resonon)

PikaL

Specifications:

Spectral range (nm): 400-1000

Spectral resolution (nm): 3.2

Spectral channels: 185

Spatial channels: 900

Max Frame Rate (fps): 187

Bit depth: 12

Hyperspectral line camera Pika NIR 640 (Resonon)

pikaNIR

Specifications:

Spectral range (nm): 900-1700

Number of bands: 336

Sensor size: 640 pixels

This instrument was bought thanks to the Spanish Ministry of Science Innovation and Universities (MICINN, grant number RTI2018-094738-B-100) financed with FEDER Funds.

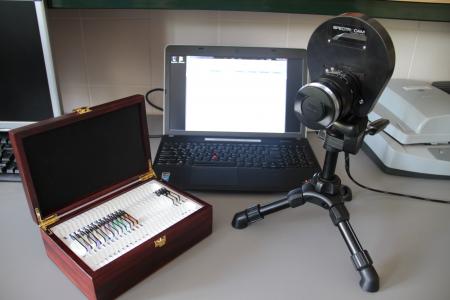

PixelTeq VIS+NIR SpectroCam

IMG_4452

Specifications:

Wavelength range: 400 - 1000 nm.

Sensor: monochrome CCD

Filter wheel: 8 slots.

Available filters: 16.

Image size: 2456×2058.

Bitdepth: 12 bits.

Computer interface: GigE.

Optics: Zeiss 15mm f/2.8 istagon T*ZF.2.

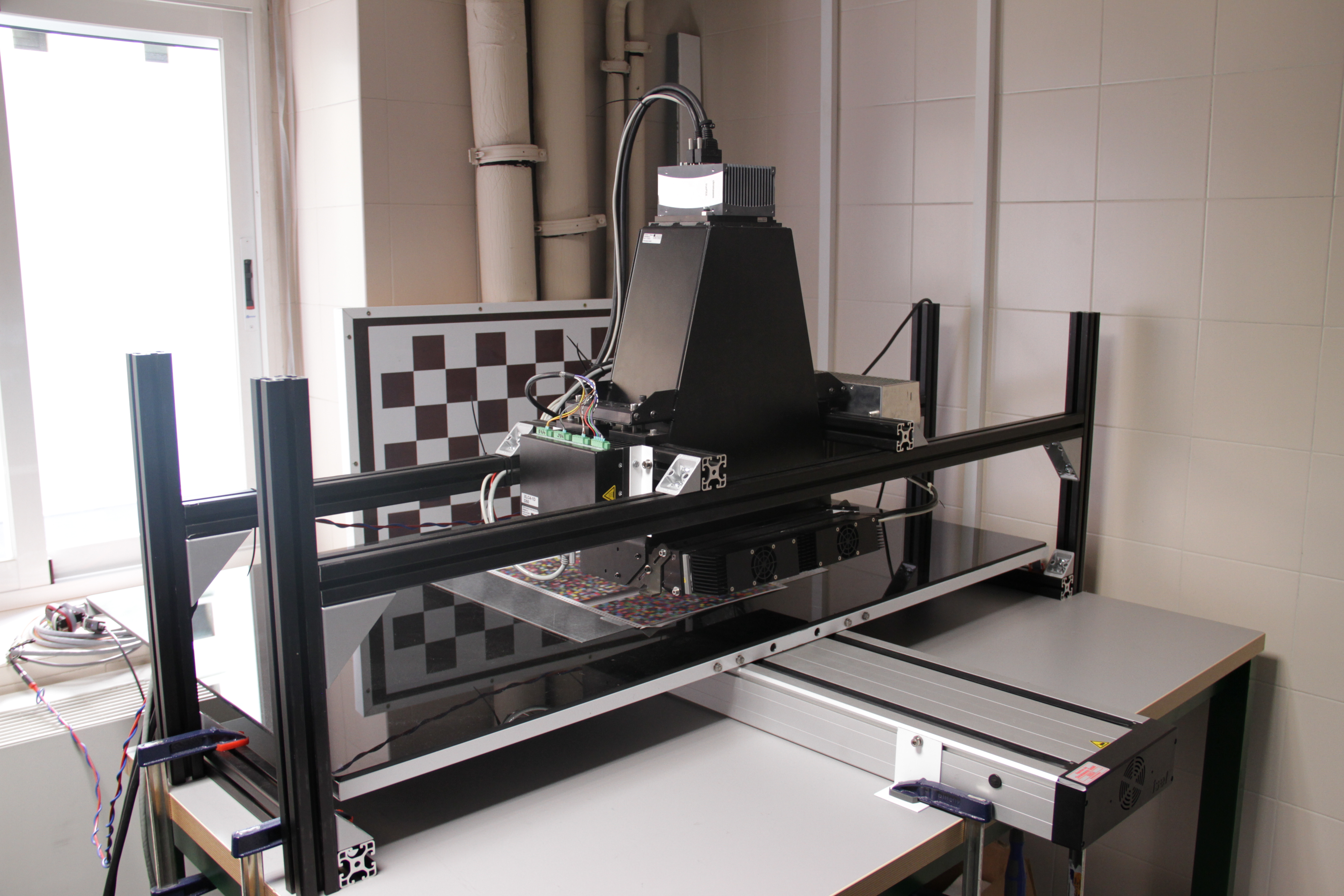

Chromasens Multispectral 12-channels line scanner TruePixa

TruePixe2

Sensor: multichannel CCD.

Number of channels: 12.

Camera output: 12 intensity images of distinc spectral bands.

Pixel size: 10μm.

Image data format: 8 or 16 bits lossless tiff.

Spectral range: Visible.

Light source: Chromasens Corona 2e tunable line light with 4 distinct types of LEDs.

Interface: Camera link.

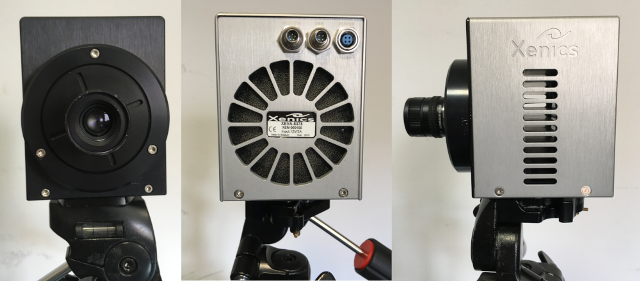

Infrared camera Xenics Xeva InGaAs 320

XenicsXeva320b

- Image size: 320 x 256 pixels.

- Spectral range: 900 - 1700 nm.

- Command, control and digital output: USB 2.0.

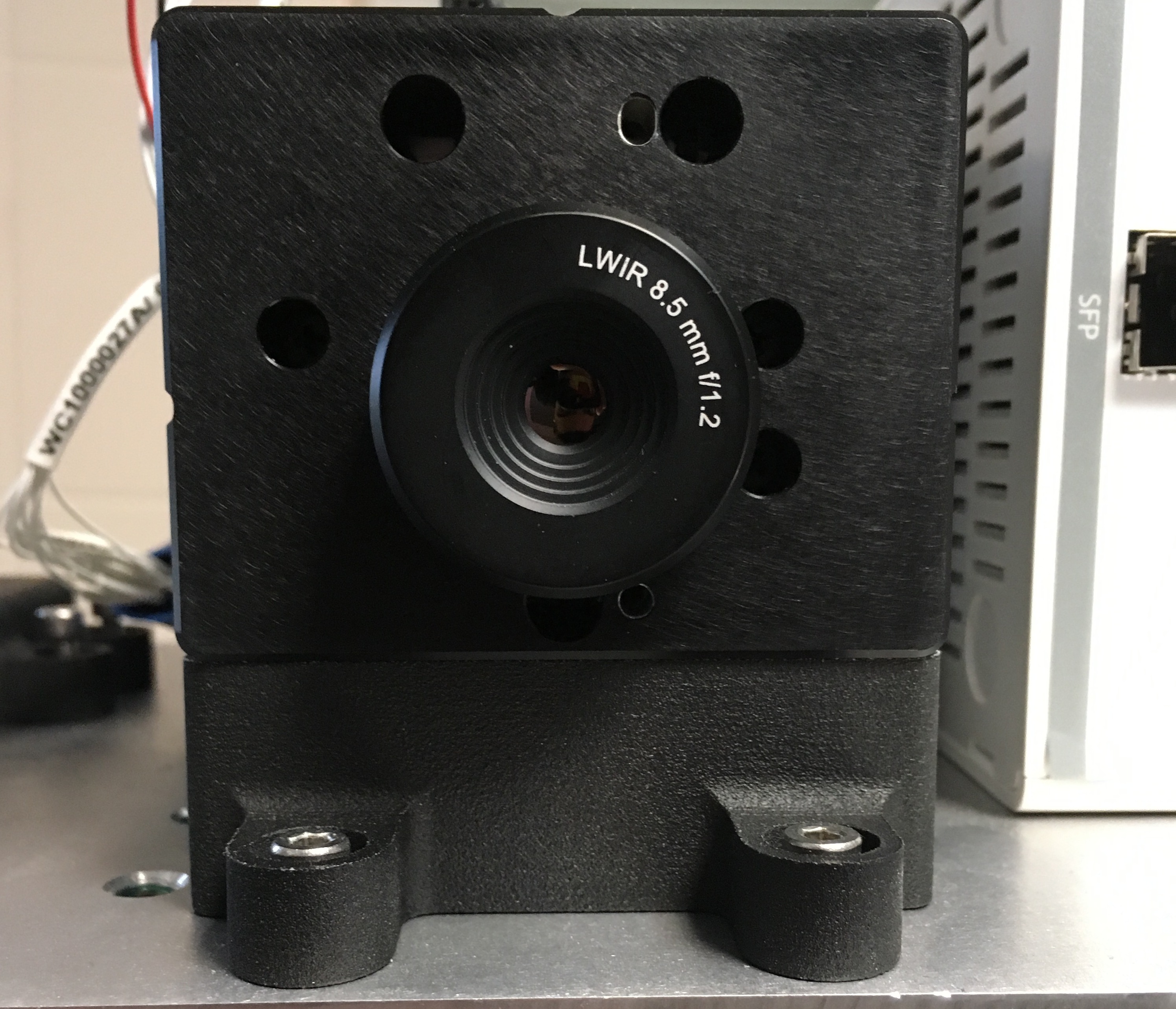

Thermal camera VUMII

termica1

Imager Type: Uncooled Microbolometer

Spectral Band: 7.5 - 14μ

Pixel Size / Resolution: 25μ / 320 x 240 NTSC

NETD: <45° mK

Communication: RS-232/RS-422 Serial

Frame Rate Full - 30/25 (NTSC/PAL) or Export - 7.5/8.3 (NTSC/PAL)

Analog Video Output RS-170/CCIR, 1.0V p-p, 75ohm; RS-170 Latency: 50ms; CCIR Latency: 60ms

Digital Video Output Camera Link; Processed Video (8 bit, 30Hz); Detector Raw Data (14bit, 60Hz); NUC & BPR (14 bit, 60Hz); Latency: 240μs

Time to Image: 1 second

Focus control: Motorized, Autofocus on Demand

Digital Zoom: 1x, 2x, 4x

Snapshot: Onboard snapshot storage

Operating Temperature: -40°C to +60°C (-40° F to +140° F)

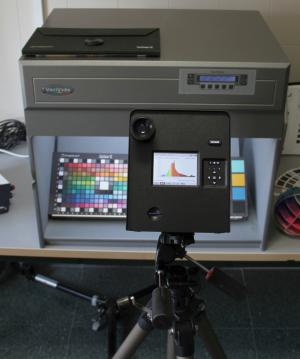

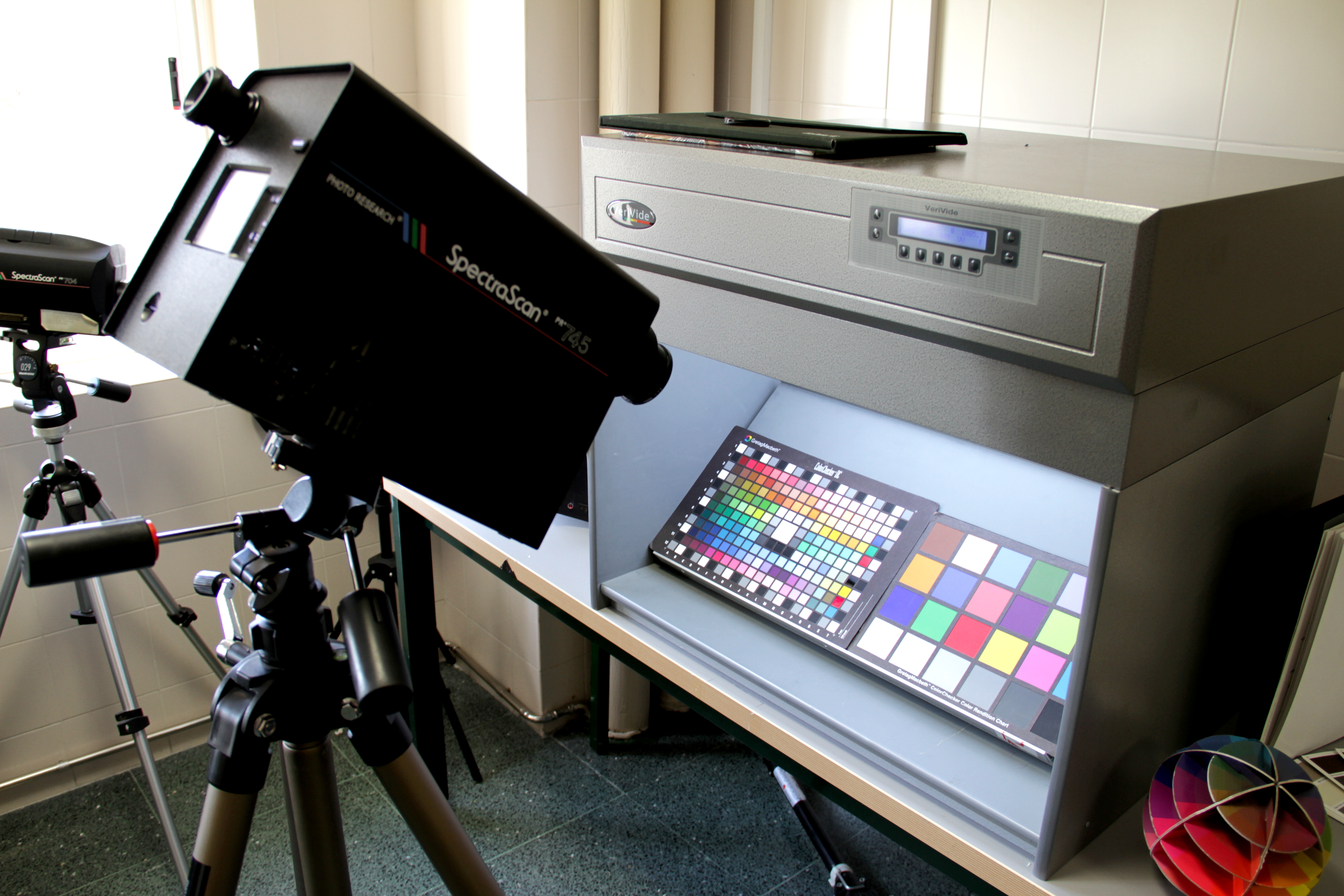

VIS+NIR Spectroradiometer Photoresearch 745

PR1 PR2

Specifications:

Wavelength range: 380 - 1080 nm.

Detectors: 512 cooled detectors.

Spectral bandwidth: 4, 8, and 14 nm.

Wavelength accuracy: < 0.8 nm.

Spectral resolution: 2 nm.

Bitdepth: 16 bits.

Apertures: 0.2º or 2º.

Computer interface: USB.

Operating temperature: 1º to 35ºC.

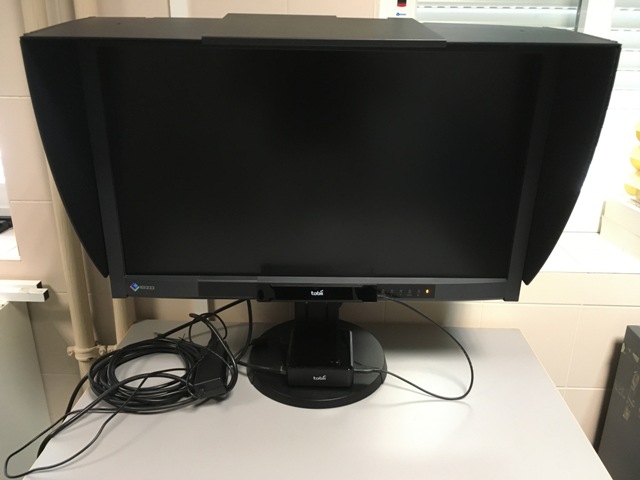

Monitor Ezio Coloredge cg277

Ezio

- Size: 27”.

- Native resolution: 2560 x 1440 (aspect ratio 16:9).

- Pixel density: 109 ppi.

- Pixel size: 0.231 x 0.2331 mm.

- Viewing angle: 178º, 178º.

- Luminance: 300 Nits.

- Contrast ratio: 1000:1.

- Adobe RGB gamut coverage: 99%.

- USB control port.

- Autocalibration.

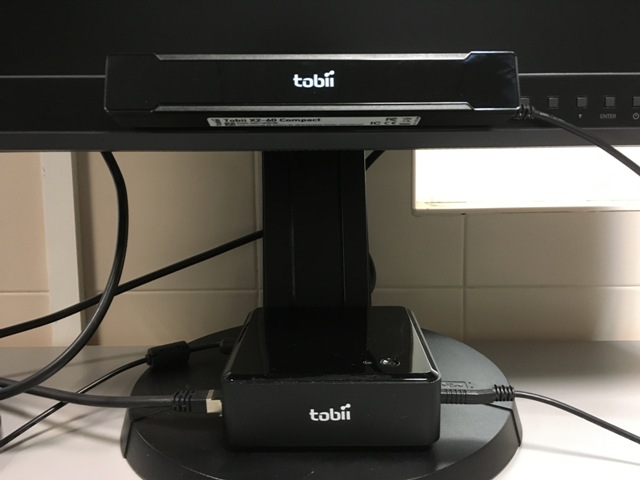

Eyetracker Tobii X2-60 compact

Tobii_x2_compact

- Sampling rate: 60 Hz.

- Latency: 50-70 ms.

- Tracking recovery for blonks: immediate.

- Head movement freedom at 70 cm: 50 x 36 cm.

- Operating distance: 40 to 90 cm.

- Recommended screen size: 25”.

- data sample output. timestamp, eye position, gaze point, pupil diameter, validity code.

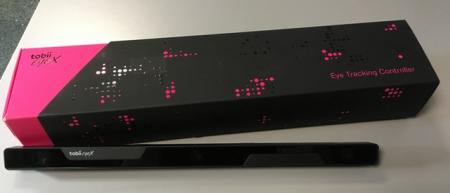

Eyetracker Tobii EyeX

Tobii_eyeX

- Sampling rate: 70 Hz.

- Max screen size: 27”.

- Operating distance: 50 - 90 cm.

- Trackbox dimmensions at 75 cm: 40 x 30 cm.

- Connectivity: USB3.

- Head tracking: No.

RGB CCD camera QImaging Retiga 1300


retiga2

Specifications:

Image size: 1360 x 1036

Pixel size: 6.45 μm x 6.45 μm.

Sensor size: 2/3”.

Binning modes: 2×2, 4×4, 8×8.

ROI.

Exposure control: 40 μs to 17.9 min in 1μs increments.

Sensor type: Progressive scan interline CCD.

Sensor readout noise: 8e-.

Dark current: 0.15e-/pix7s cooled.

Cooling type: Peltier thermoelectric cooling to 25ºC below ambient.

Bitdepth: 12 bits.

Frame rate: 10fps at full resolution. @ 12 bits.

Computer interface: Firewire.

Gain control: 0.7 to 23 times.

Offset control: Software.

Monochrome CCD camera QImaging Retiga SRV

retiga1

Specifications:

Image size: 1392 x 1040 pixels.

Pixel Size: 6.45 μm x 6.45 μm.

Sensor size: 2/3”.

Sensor readout noise: 8e-.

Dark current: 0.01e-/pix7s cooled.

Electronic shutter.

Binning up to 8×8.

ROI.

Cooling -45ºC, regulated.

External trigger.

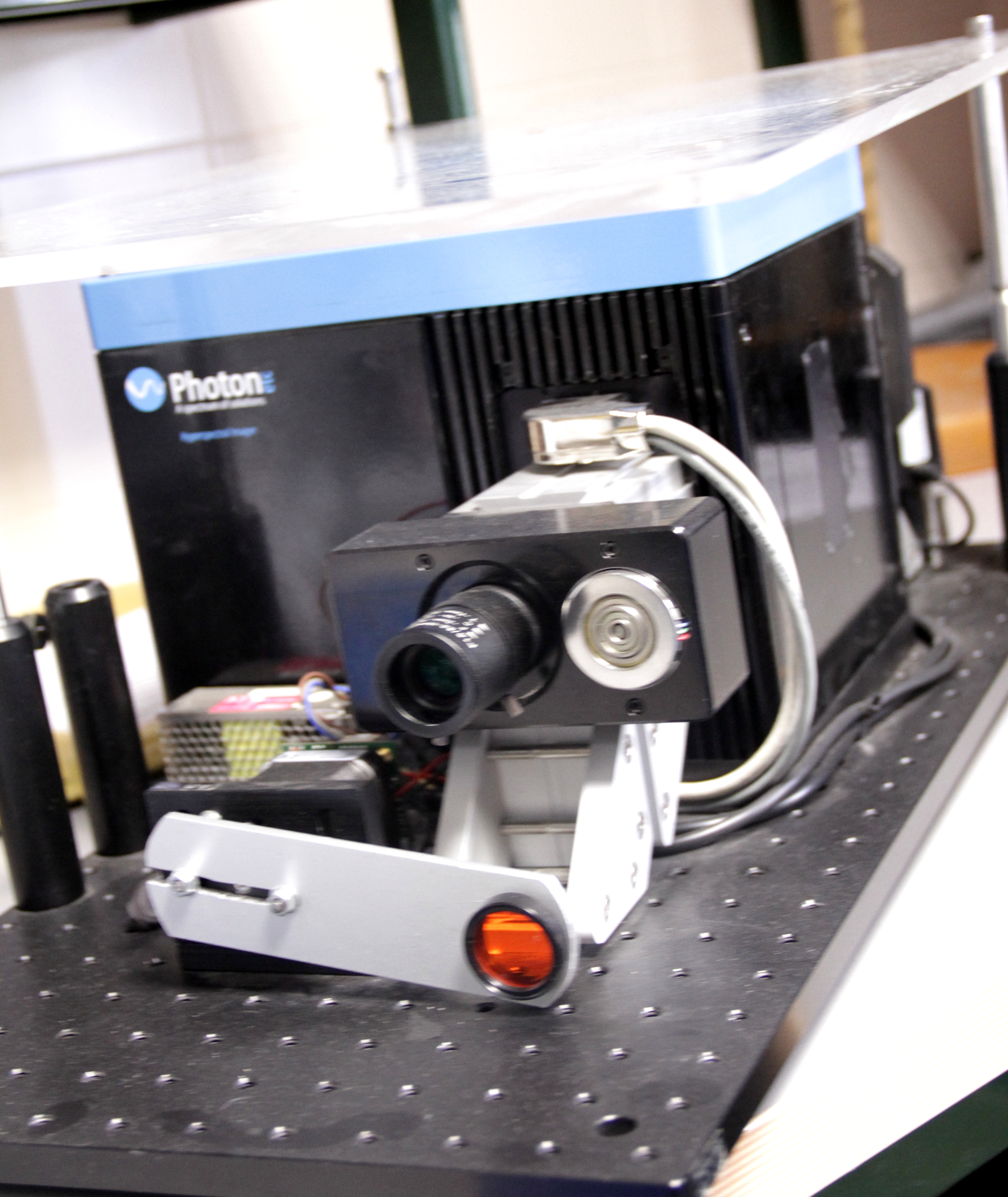

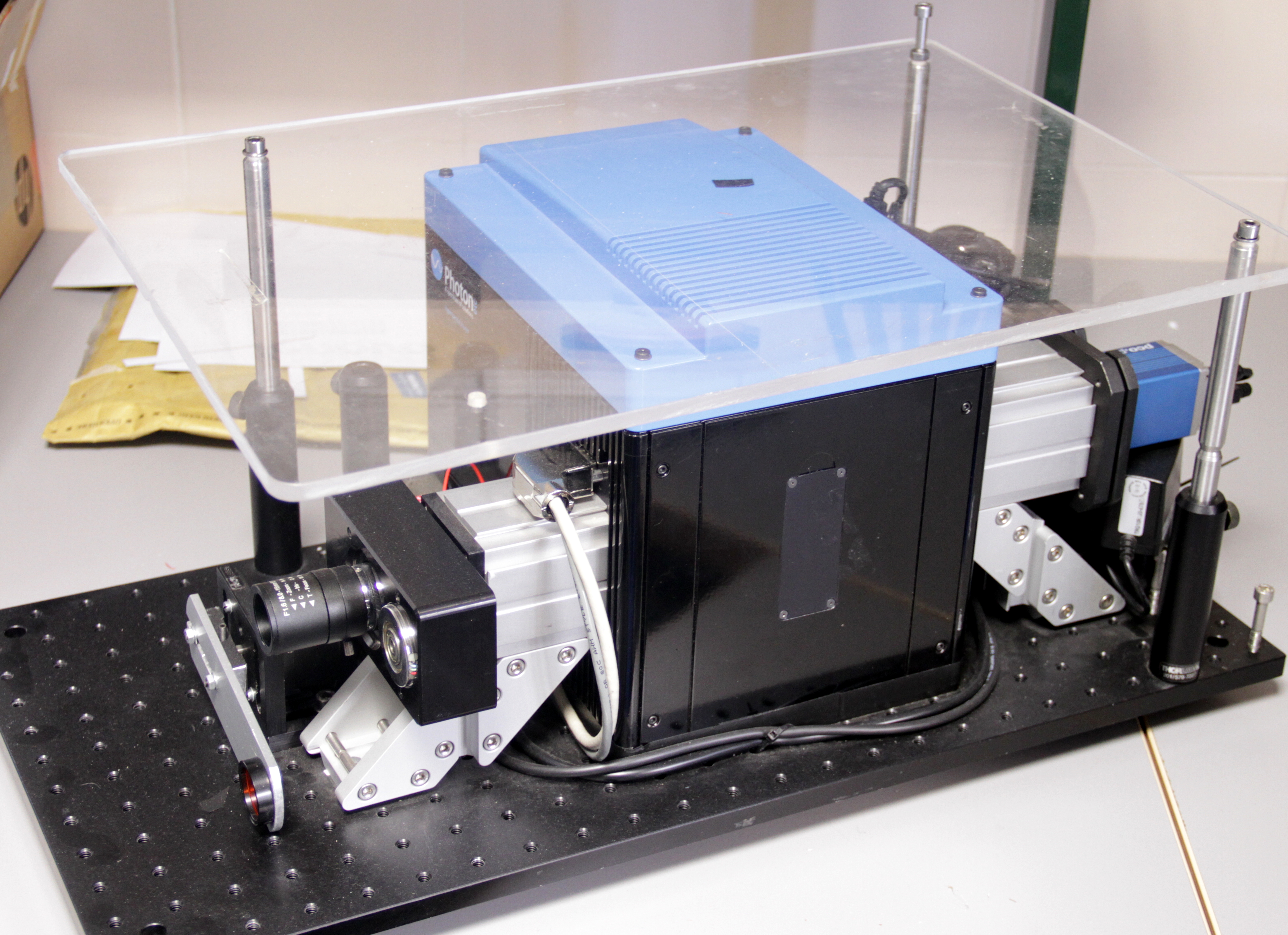

PhotonEtc V-EOS Bragg grating-based Hyperspectral Imager

HImager1 HImager2

Specifications:

Spectral channels: continuously tunable.

Spatial resolution: 2mm at 1.20m with FOV of 1.85 m x 1.35 m.

Spectral range: 400 - 1000 nm

Standard field of view: 72º horizontal, 50º vertical.

Calibration: automatic.

Wavelength absolute accuracy: < 0.4 nm.

Spectral resolution: 2 nm.

Pixel size: 6.45 μm x 6.45 μm.

Bitdepth: 14 bits.

CCd frame rate: 13.5 frames/second

Lens mount: C-mount.

Interface: USB.

Focus: motorized.

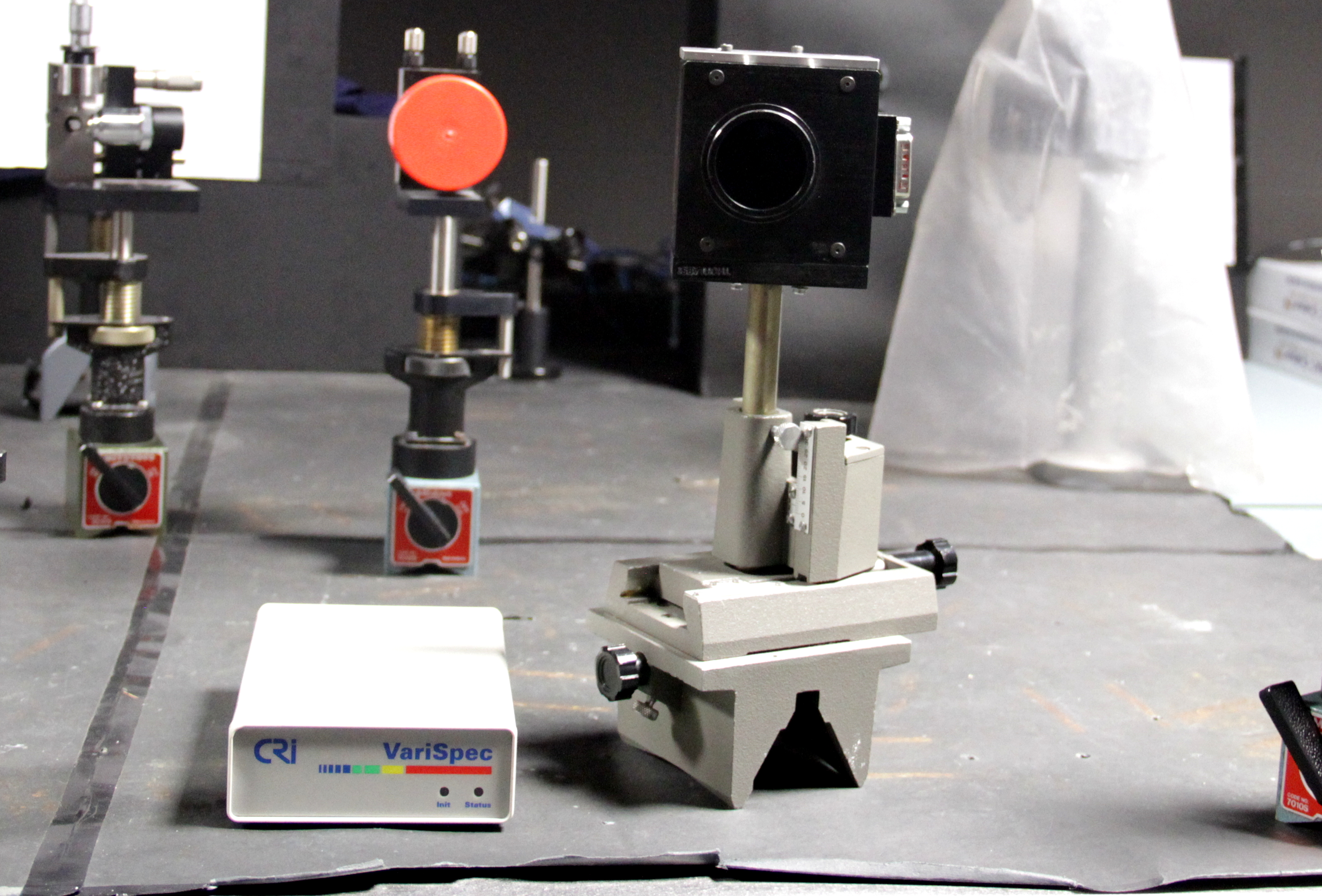

CRI Varispec Liquid Crystal Tunable Filter

LCTF1

Specifications:

Spectral range: 400 - 720 nm.

Bandwidth: 7, 10, or 20 nm.

Aperture: 35 mm.

Angle of acceptance: 7.5º half angle.

Response time (room temp): 50 ms.

Wavelength accuracy: Bandwidth / 8 +- 0.5 nm.

Maximum optical throughput: 500 mW/cm2.

Operating temp: 10 to 40º C.

Computer interface: USB 1.1.

Power supply: USB powered.

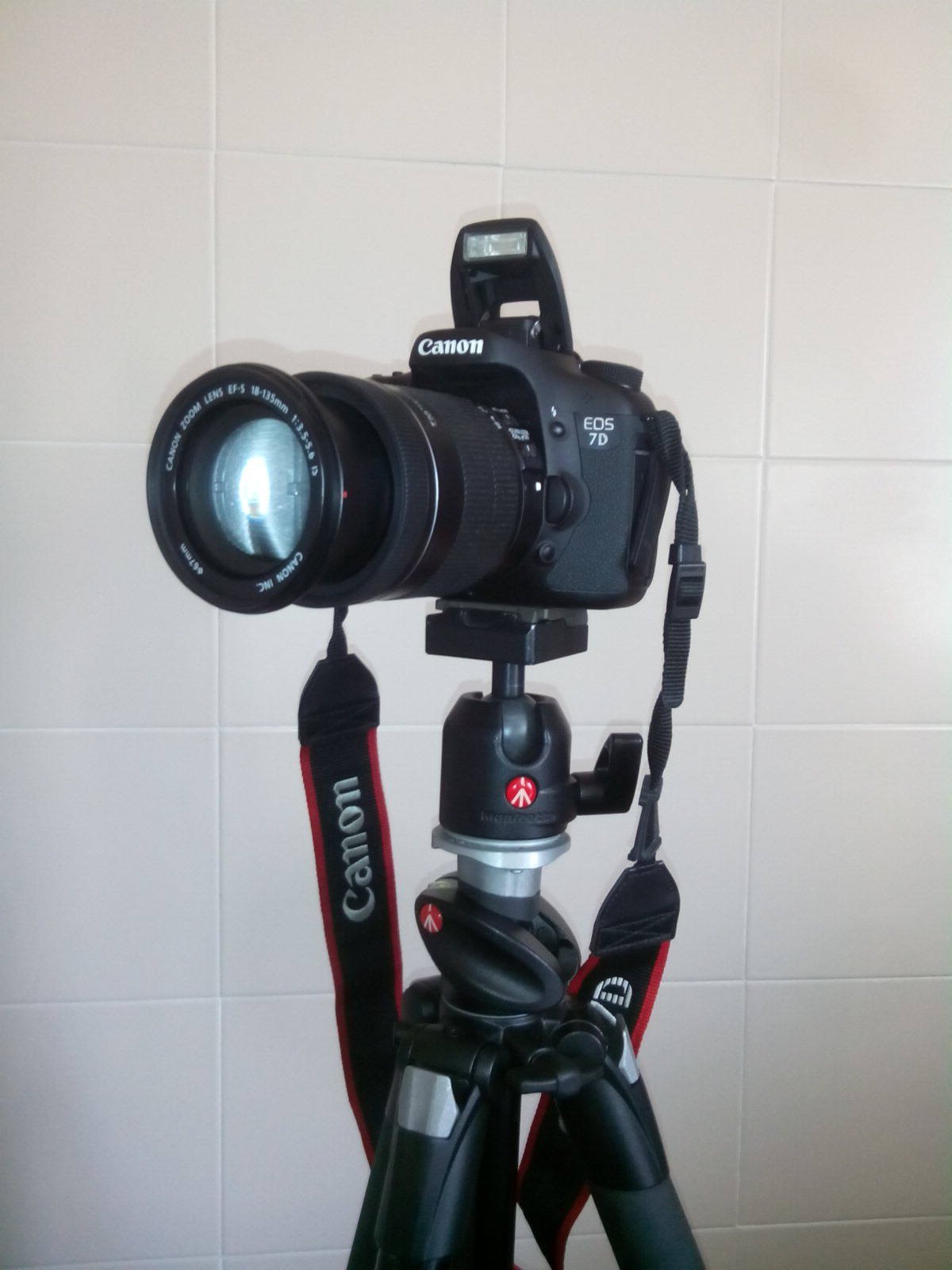

RGB Canon EOS 7D

Canon2

Specifications:

Type: Digital, AF/AE single-lens reflecx camera with built-in flash.

Maximum image size: 5184 x 3456 pixels.

Recording media: CF card.

Computer interface: USB 2.0.

Image format: 22. x 14.9 mm (APS-C size).

Lens mount: Canon EF mount.

Sensor_ High-sensitivity, high-resolution, large single-plate CMOS.

Pixel size: 4.3 μm x 4.3 μm.

Color filter System: RGB primary color filters.

Low pass Filter: Fixed position in front of the CMOS sensor.

Dust deletion feature: Automatic sensor cleaning.

Image formats: JPEG, RAW (14 bits, Canon original), sRAW, and mRAW.

Video format: MOV (Image data: H.264, Audio: Linear PCM).

Color spaces. sRGB and Adobe RGB.

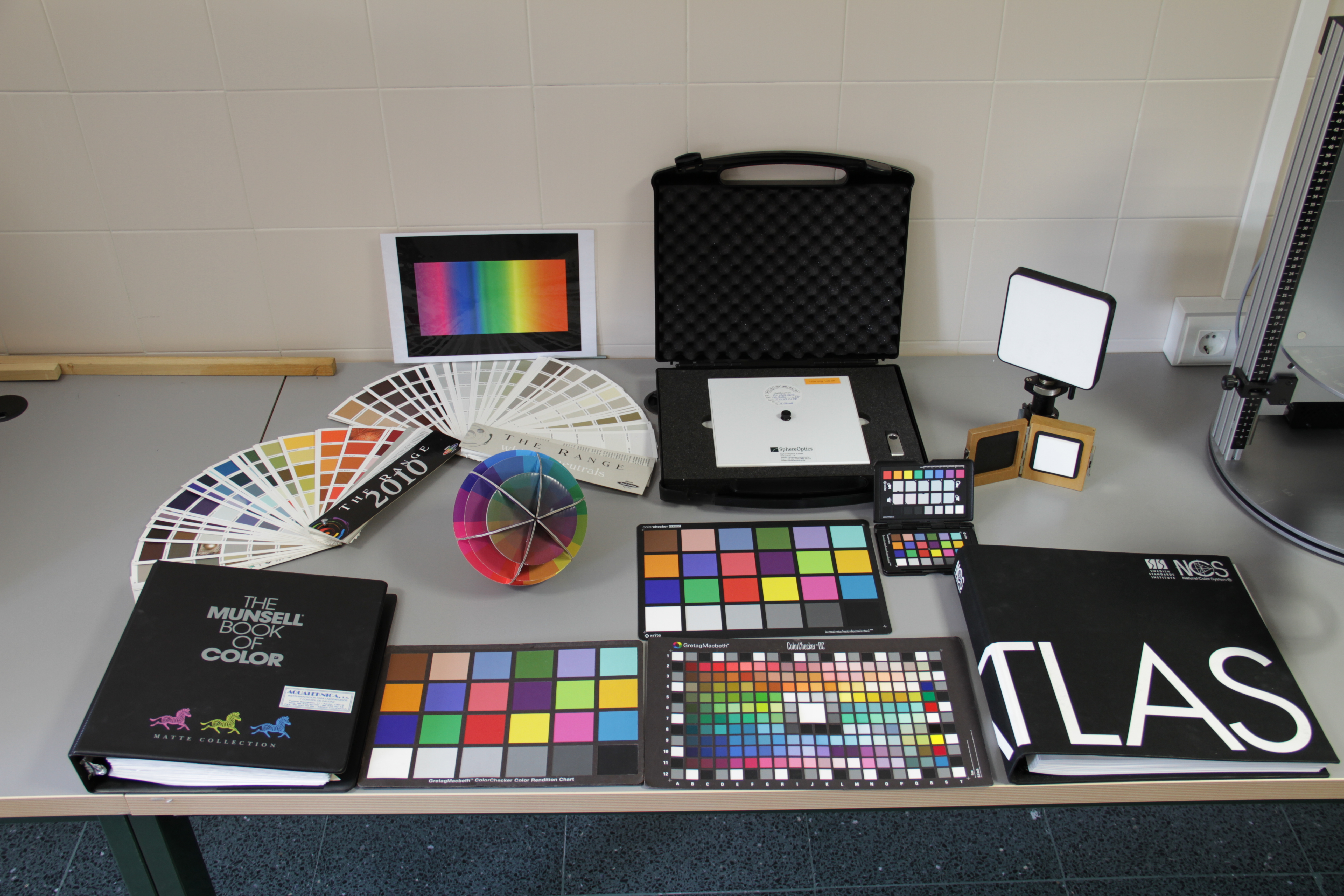

Color atlases

Atlas1

Munsell book of color.

NCS atlas

GretagMacbeth ColorChecker. Color rendition chart

Xrite ColorChecker Classic

GretagMacbeth ColorChecker DC

Xrite ColorChecker Passport photo

Sphere Optics Spectralon white calibration.
